VERSATILE
In a world of digital systems, ZKR Versatile Nurse Calling equipment, based on LAN technology for connection between system units, has evolved and contributed to improving patient care in hospitals, leading to saving lives and achieving significant material savings, because the medical personnel could be alerted and intervened in a timely manner to solve some emergency situations, whose production would have been notified otherwise after a long time.
ZKR Versatile IP technology of Nurse Calling systems allows hospitals to use the available structured cabling, which reduces installation time.
The Nurse Calling system can be compared to a burglary detection system or a fire detection system.
It is very important to be notified of a fire, which can be neutralized with 2-3 cups of water and a housewife, but it is very difficult to intervene after this small fire has turned into a fire which sometimes even a few firefighter emergency trucks with dozens of firefighters cannot cope.
ZKR Versatile Nurse Calling systems are intuitive and easy to use, with specialized options, designed to handle patient requests and include both workflow and staffing capabilities.
In the event of an emergency, the location and type of the call, for example: room 102 bed 6 will appear on the screen located in the cabinet or cabinets of the nurses.
The Nurse Calling system creates priorities based on the type of call and displays them on the monitor in the nurse's office or on a pager in their possession.
All calls, emergency calls, bathroom toilets and the nurse's visit can be tracked on a local or remote panel.
All actions that go through the system are recorded and all records can be reported in detail.
Routine control is a standard feature and allows staff to report what time an in-room check was made without a call. The control unit hardware has a card reader, each card has the name of an assistant or doctor.
At the entrance to each salon there is a signal lamp, which can be colored in three colors: green, red, blue depending on what happens in the salon: medical presence, emergency call or resuscitation unit call.
The ZKR Versatil system has no limit on the number of beds connected.

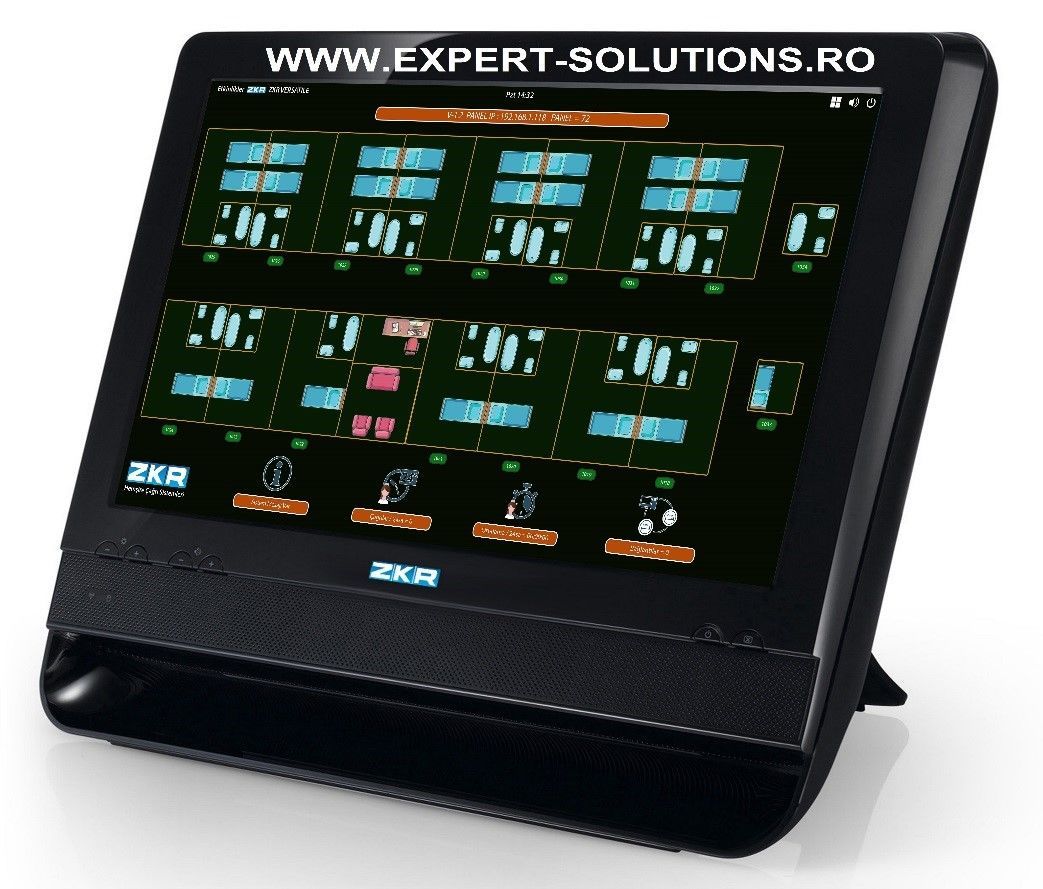

Assistant cabinet control panel
Comfortable and modern, it has a 47 cm diagonal touchscreen displaying the patient's room and bed.
In the event of an emergency, the location and type of the call will be displayed on the panel.
The system creates priorities based on the type of call and displays them on the monitor.
All calls, emergency calls, toilet-bath and nurse's visit can be tracked on the local or remote panel.

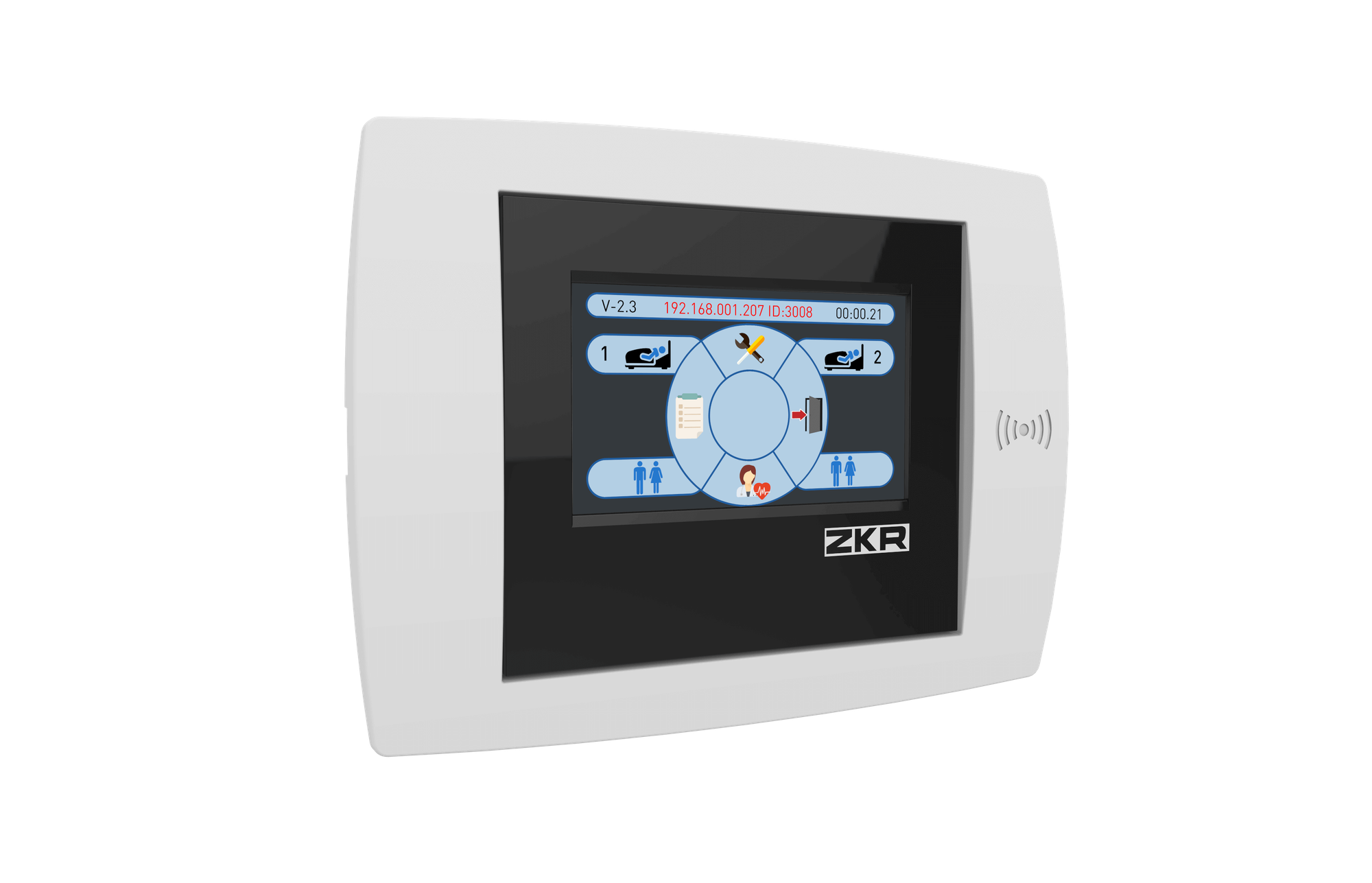

Patient salon control unit
This unit ensures communication between the Assistant Cabinet Control Panel and the Call Buttons in the patient rooms.
The unit has an 11 cm touchscreen and contains a card reader inside.
All the cards that are read by the unit are checked for authorization.
The control unit can be mounted on the surface or recessed into the wall.

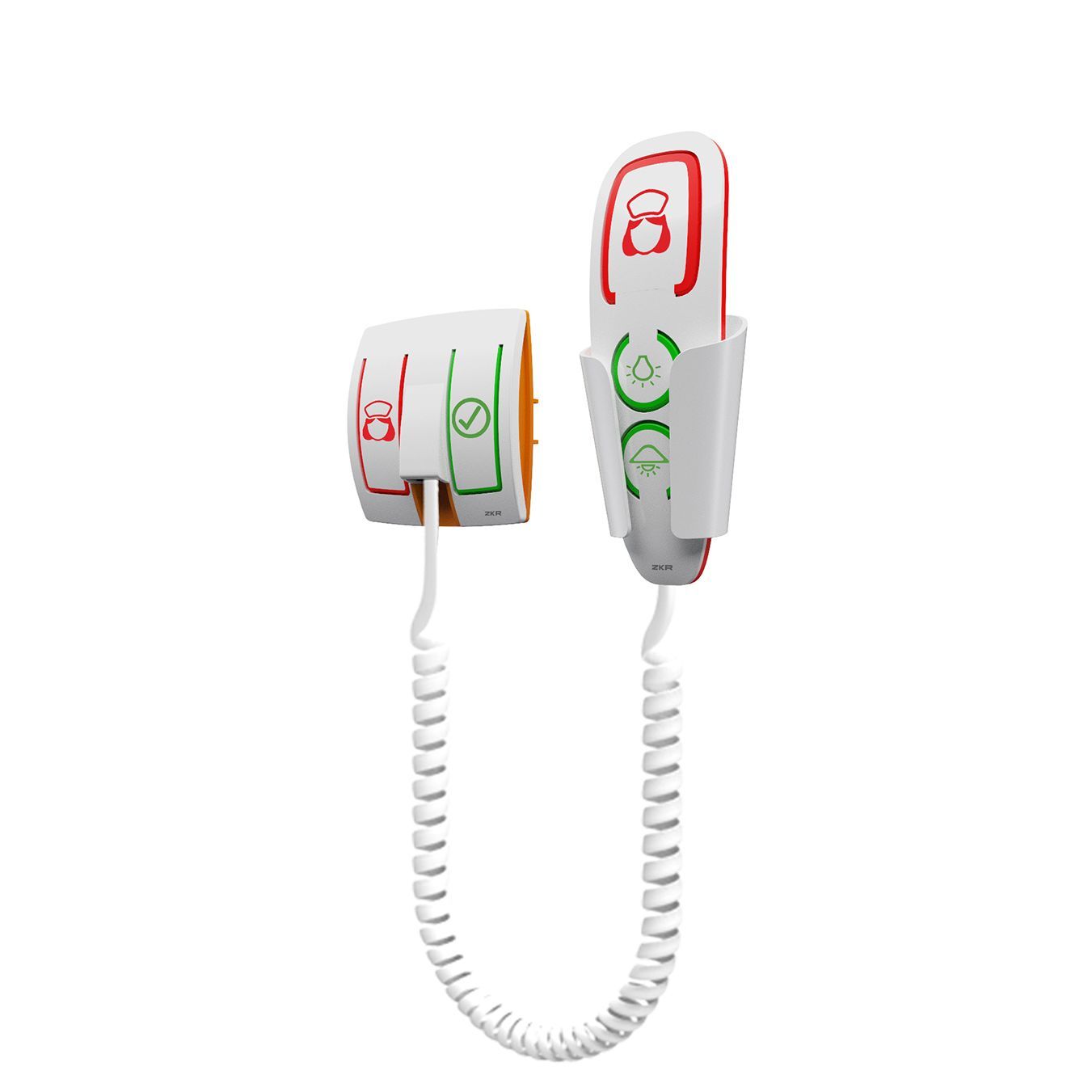

Patient bed / hand unit
The patient uses the call button to make an emergency call.
The call button lights up red when the emergency call is initiated, the green button being used to reset the call, after medical personnel authenticate the card.
The handheld unit offers more facilities to the patient, who can make emergency calls, but can control also the light in the room.

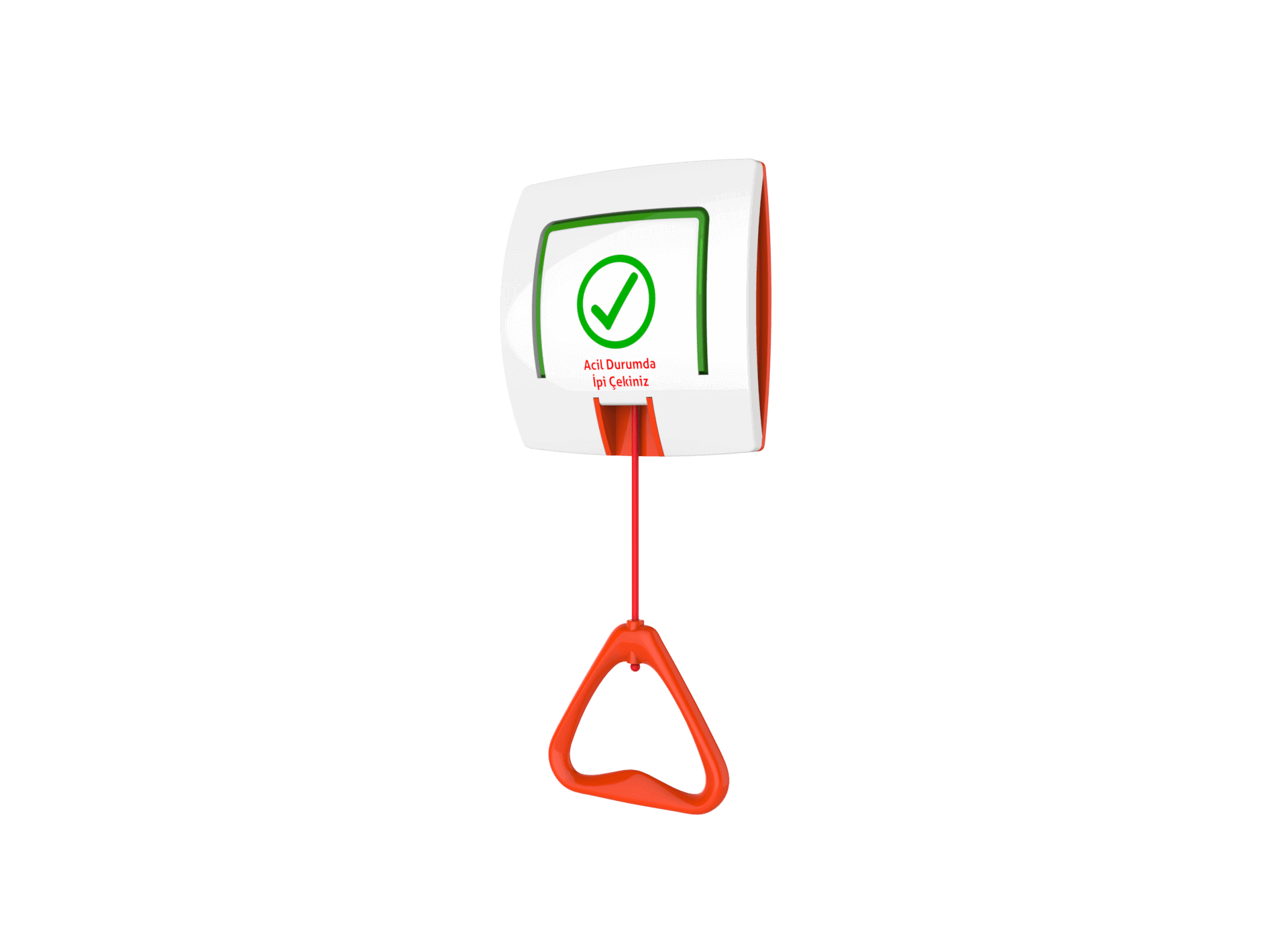

Emergency button wc bathroom
The WC call unit is illuminated from the back and is used in the bathrooms of the patients' rooms for emergency calls.
In case of emergency the patient draws the rope by making an emergency call, on the panel in the nurse’s cabinet or on the Android phone the emergency call will appear.
The system gives priority to WC emergency calls and these calls will appear on the nurse’s console before other calls.
There is a call reset button and an emergency call cord on the unit.

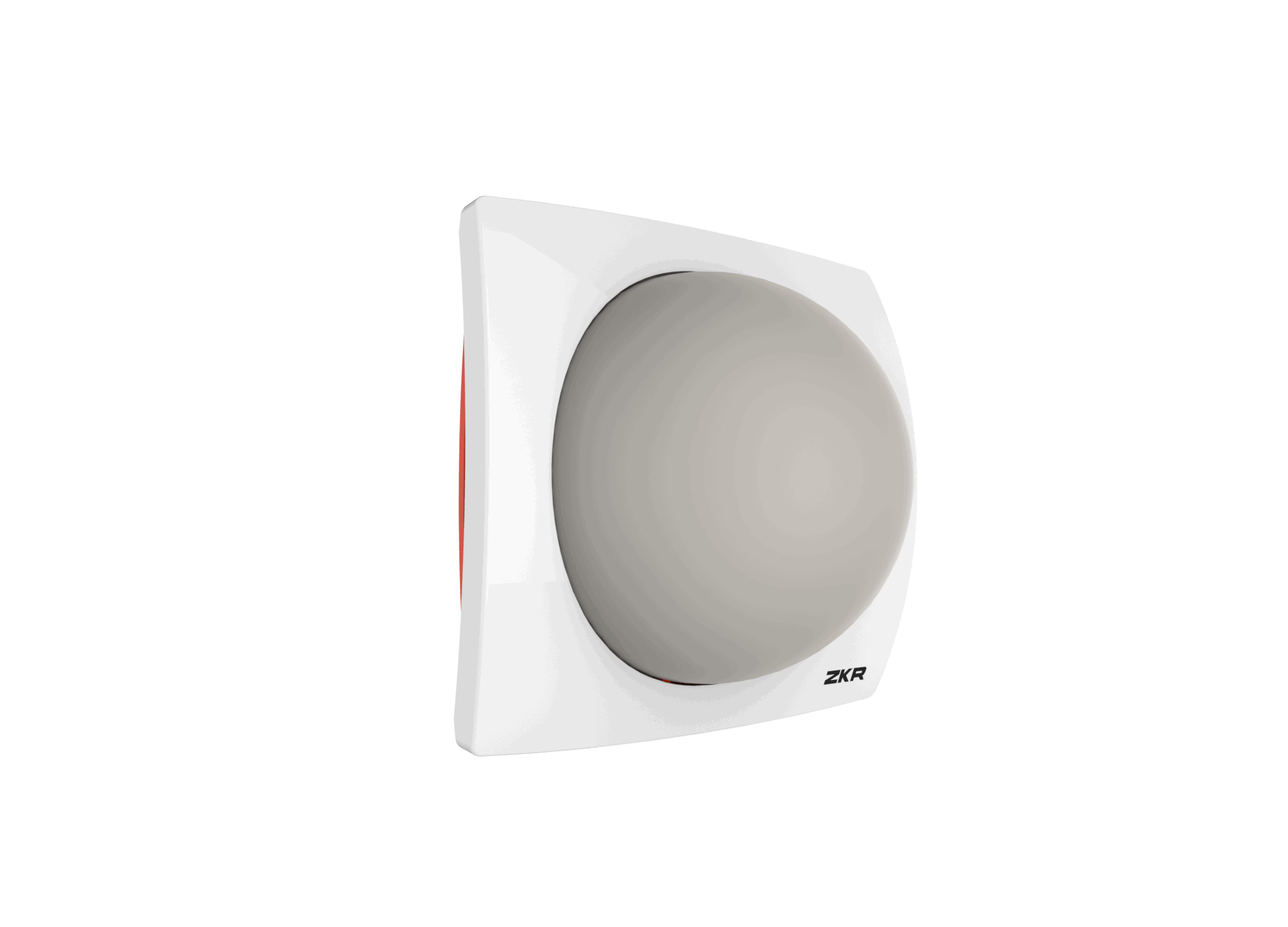

Patient salon lamp
It is mounted above the entrance door to the patient's room and is shaped like a half sphere.
It may have different colors depending on the situation in the room: green - medical presence, blue - resuscitation unit, red or other colors.

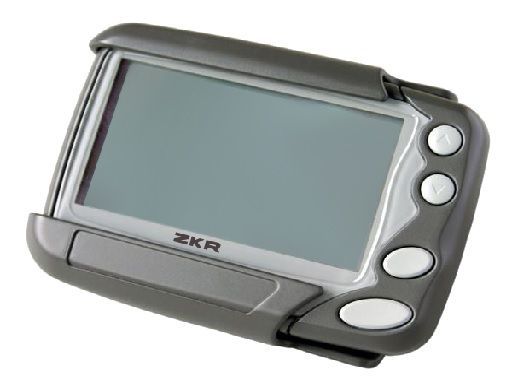

Pager
Manages messages to nurses, doctors or other medical staff.
It has the possibility to display 8 lines of text on the screen and can record up to 99 messages in the loop, the newest message overwritten over the oldest message received
It has low power consumption, uses a single AAA battery.

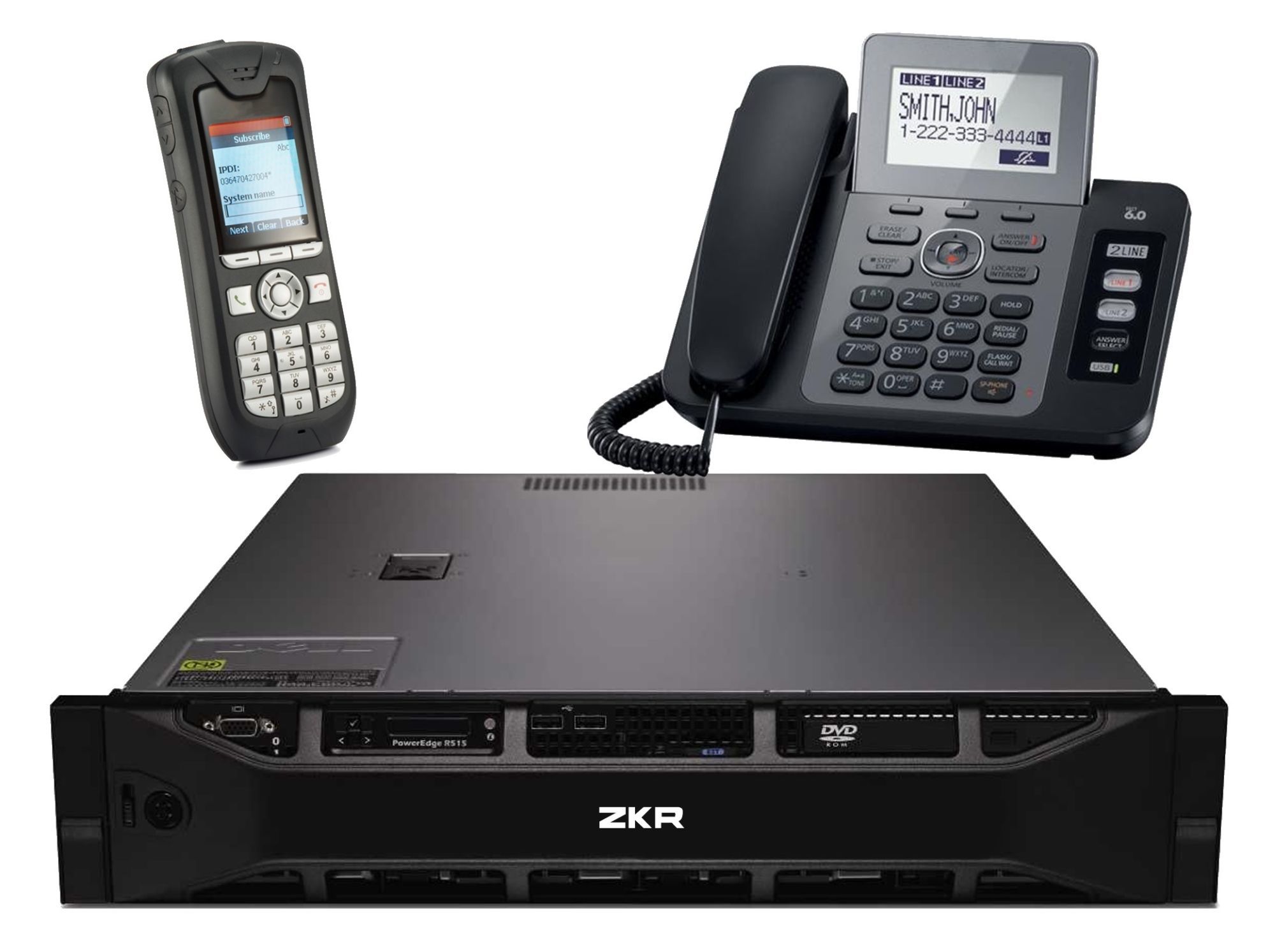

The server
The server allows recording operations performed and various integrations.
The patients or nurse’s emergency calls can be directed to the consulate in the nurses office, to pagers or to dedicated mobile phones.
Dedicated software
Through the dedicated software you can integrate and manage all nursing panels, patient consoles, all types of alert buttons in the system, pagers receiving alerts, IP telephony system.
Can manage the hospital alert codes blue code, red code, pink code, customized according to the rules imposed by the beneficiary.
Reports can be obtained that allow the traceability of the personnel, the workflow, the way of handling the emergency calls, thus achieving the optimization and the security of the processes.
